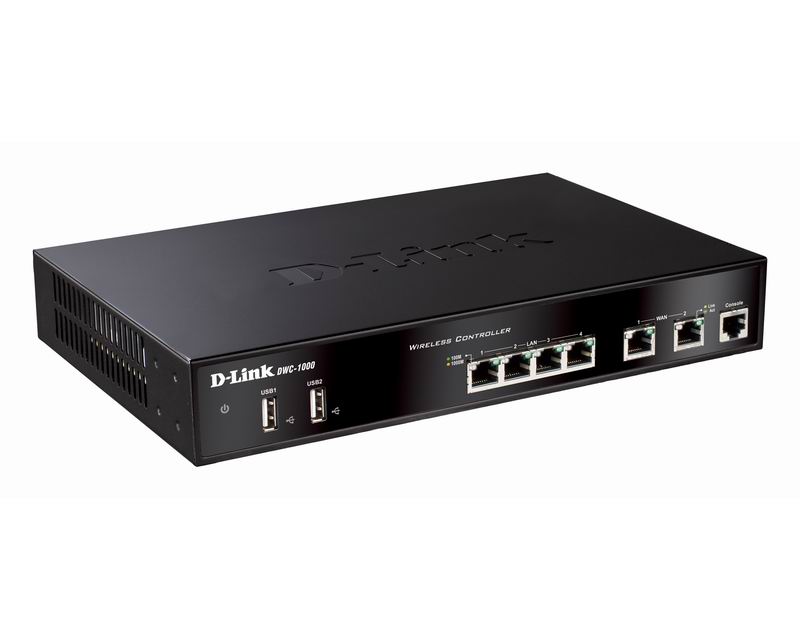

D-Link DWC-1000 wireless controller

Interfaces

4x Gigabit LAN ports
2x Gigabit option ports3
2x USB 2.0 ports
1x Console (RJ-45) port

Capacity and performance

Default/maximum1 APs per unit: 6/24
Default/maximum1 APs per cluster: 24/96
Concurrent Captive Portal authentication users (wired/wireless): 124/400
Dedicated IPSec VPN tunnels: 70
Dedicated PPTP/L2TP VPN tunnels: 25
Dedicated SSL VPN tunnels: 20

Compatible Access Points

DWL-3600AP
DWL-6600AP
DWL-8600AP

AP discovery & control

Layer 2
Layer 3

AP monitoring

Managed AP
Rogue AP
Authentication fail AP
Standalone AP

Client monitoring

Authenticated client
Rogue client
Authentication fail client
Ad-hoc client

Centralised management

RF channel pattern
RF power output
Security policy

Roaming

Fast roaming
Intra/inter-controlling roaming
Intra/inter-subnet roaming

Wireless security

WEP
Dynamic WEP
WPA Personal/Enterprise
WPA2 Personal/Enterprise

LAN security

802.1x port-based access control
Guest VLAN

Wireless Intrusion Detection & Prevention System (WIDS)

Rogue/Valid AP classification
Rogue AP mitigation

Authentication

Captive portal
MAC authentication

VLAN

VLAN group: up to 255 entries
802.1q VLAN
Subnet-based VLAN
Port-based VLAN

Firewall system2

Policy: 100 rules per feature, up to 600 rules total
Dynamic routing: RIPv1, RIPv2
Dynamic DNS
NAT/PAT
Web content filtering (Static URL/Keywords)

Networking2

Route failover
Outbound load balancing

Virtual Private Network (VPN) 2

Encryption: DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL
IPSec NAT Traversal
Dead Peer Detection
IP Encapsulating Security Payload (ESP)
IP Authentication Header (AH)
VPN Tunnel Keep Alive
Hub and Spoke

SSL Virtual Private Network (SSL VPN) 2

Encryption: DES, 3DES, AES
Message integrity: MD5, SHA1

System management

Web based user interface (HTTP)
Command line interface (CLI)
SNMP v1, v2c, v3

Physical and environmental

Internal power supply: DC 12V/2.5A
Max. Power Consumption: 19.3 W
Dimensions: 280 x 180 x 44 mm (W x L x H)
Weight: 1.7 Kg.
Operation Temperature: 0 to 40 °C
Storage Temperature: -20 to 70 °C
Operation Humidity: 5% to 95%, Non-condensing

Certifications

FCC Class B
CE Class B
VCCI
C-tick
IC
cUL, LVD (EN60950-1)

1 The number of managed APs can be increased by purchasing additional DWC-1000-6AP-LIC licenses
2 Feature enabled by purchasing the DWC-1000-VPN-LIC license
3 The first port is enabled by default. The second port is enabled by purchasing the DWC-1000-VPN-LIC license
