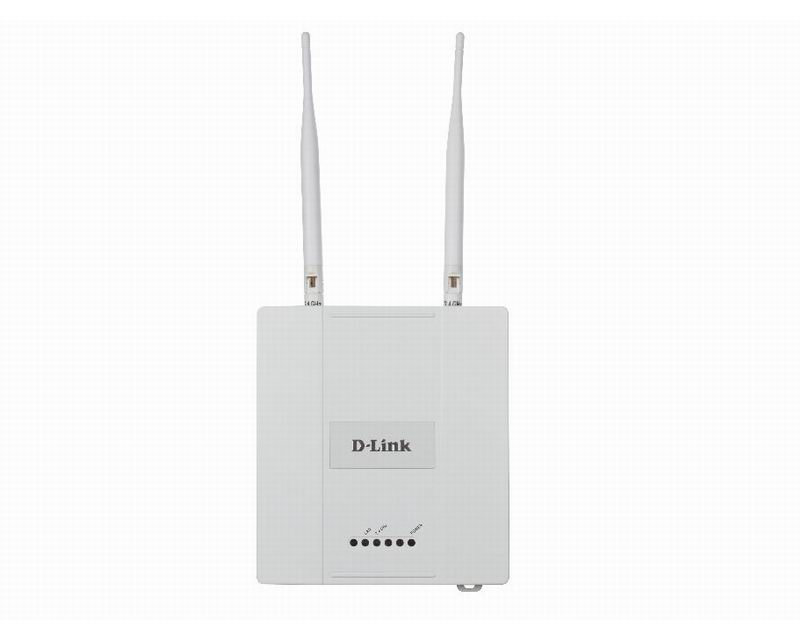

D-Link DAP-2360 Access Point

802.11n connectivity for increased network capacity
Up to 300 Mbps wireless speeds
White rugged metal plenum-rated chassis to meet fire regulations
Four products in one: Access Point, Wireless Client, WDS, WDS with AP
1 Gigabit Ethernet port for the fastest wired speeds
Power over Ethernet (PoE) support for convenient installation
Multiple SSID for wireless network segmentation
AP Array feature to help IT administrators quickly deploy a multi-point wireless network
Load Balancing function to optimise high network traffic volume and redundancy
VLAN support
WMM? (Wireless Multi Media) to prioritise audio, video and voice applications
Enhanced security with RADIUS support
High power radio design

The DAP-2360 is a Wireless N PoE Access Point ideal for any network administrator to create or expand the capacity of a wireless network. This Access Point can be used in high-traffic areas such as airports, coffee shops, shopping centers, sporting venues, and university campus deployments. Providing transfer rates of up to 300 Mbps in the 2.4 GHz frequency range, users can connect wirelessly with legacy 802.11b/g adapters as well as the latest 802.11n adapters to enjoy faster downloads and instant communication.

Versatile Access Point

The DAP-2360 allows network administrators to deploy a highly manageable and extremely robust 802.11n wireless network. The included detachable antennae provide optimal wireless coverage in the 2.4 GHz band using a high power radio design to reduce dead spots and increase capacity. Enclosed in a white plenum rated metal chassis, the DAP-2360 easily blends into ceilings or walls and adheres to strict fire codes for placement in air passageways. For advanced installations, this high-speed Access Point has integrated 802.3af Power over Ethernet (PoE), making installation easy in areas where power outlets are not readily available.

Enhanced Performance

The DAP-2360 delivers reliable wireless performance with maximum wireless signal rates of up to 300 Mbps in the 2.4 GHz wireless band. This, coupled with support for Wi-Fi Multimedia (WMM?) Quality of Service features, makes it an ideal Access Point for audio, video, and voice applications. Additionally, the DAP-2360 supports load balancing features to ensure maximum performance by limiting the maximum number of users per Access Point.

Security

To help maintain a secure wireless network, the DAP-2360 provides the latest in wireless security technologies by supporting both Personal and Enterprise versions of WPA? and WPA2? with support for RADIUS server backend. To further protect your wireless network, MAC Address Filtering, Wireless LAN segmentation, SSID Broadcast Disable, Rogue AP Detection, and Wireless Broadcast Scheduling are also included. The DAP-2360 includes support for up to eight VLANs for implementing multiple SSIDs to further help segment users on the network. It also includes a wireless client isolation mechanism, which limits direct client-to-client communication.

Multiple Operation Modes

To maximise total return on investment, the DAP-2360 can be configured to optimise network performance based on any one of its multiple operation modes: Access Point, Wireless Client, Wireless Distribution System (WDS), and WDS with Access Point. With WDS support, network administrators can set up multiple DAP-2360s throughout a facility and configure them to bridge with one another while also providing network access to individual clients. The DAP-2360 also includes advanced features such as Load Balancing, which optimises high network traffic volume, and redundancy for fail-safe wireless connectivity. Additionally, the DAP-2360 offers Spanning Tree Protocol support for greater efficiency and to avoid broadcast storms when used in WDS mode.

Network Management

Network administrators have multiple options for managing the DAP-2360, including Web (HTTP), Secure Sockets Later (SSL), which provides for a secure connection to the Internet, Secure Shell (SSH), which provides for a secure channel between local and remote computers, and Telnet. For advanced network management, administrators can use the D-Link AP Manager II or D-View SNMPv3 management module to configure and manage multiple Access Points from a single location. In addition to a streamlined management process, the AP Manager II or D-View software provides network administrators with the means of verifying and conducting regular maintenance checks remotely, eliminating the need to send personnel out to physically verify proper operation. With 2.4GHz band functionality, PoE support, a plenum-rated chassis, extensive manageability, versatile operation modes, and solid security enhancements, the DAP-2360 provides small and medium business environments with a business-class solution for deploying a wireless network in the workplace.

D-Link DAP-2360 Termékjellemzők

Standards

IEEE 802.11n
IEEE 802.11g
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3u
IEEE 802.3

Management

Telnet – Secure (SSH) Telnet
Web Browser Interface
HTTP – Secure HTTP (HTTPS)
SNMP Support
D-View Module – Private MIB
AP Manager II
AP Array

Security

WPA? – Personal
WPA2? – Enterprise
WPA2? – Personal
WPA2? – Enterprise
64/128-bit WEP
SSID Broadcast Disable
MAC Address Access Control
Rogue AP Detection

VLAN

802.1q VLAN support

SSID Support

Multiple (up to 8 SSID)

Quality of Service (QoS)

4 Priority Queues
WMM Wireless Priority

Wireless Frequency Range

2.4 GHz to 2.4835 GHz

Operating modes

Access Point (AP)
WDS with AP
WDS/Bridge (No AP Broadcast)
Wireless Client

Dipole Antenna Gain

5 dBi @ 2.4 GHz

Maximum Transmit Output Power

FCC : 26 dBm / ETSI : 14 dBm (Dual Chain)

LEDs

Power
LAN
2.4 GHz

Maximum Power Consumption

9 watts with PoE
8 watts without PoE

Power Supply

5 V/2.5 A or PoE

Temperature

Operating: 0 to 40 °C
Storage: -20 to 65 °C

Humidity

Operating: 10% to 90% (Non-condensing)
Storage: 5% to 95% (Non-condensing)

Certifications

FCC Class B
UL 2043
IC
WiFiŽ

Weight

768 g.

Dimensions (W x H x D)

166 x 188 x 37 mm
